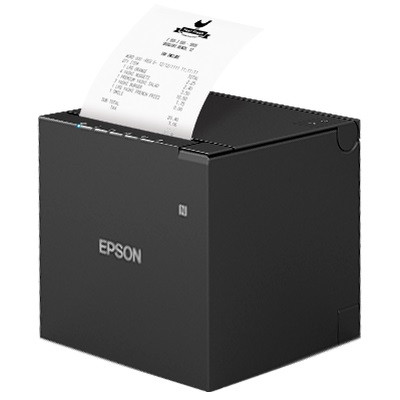

Sleek and compact, ideal for mPOS receipt printing.
Modern and compact design - sleek 76.2mm thermal receipt printer; small size; supports both front and top paper exits; standard near-end sensor
Fast, stable network tethering - wired network communication with iOS® or Android™ mobile device via USB-C connection, at up to 20 Mbps
Versatile connectivity - built-in interfaces; USB-A x 2, USB-B, and Ethernet; optional dual Wi-Fi® /Bluetooth® interface available
POS hub capability - connect to USB POS peripherals; Sync & Charge feature can deliver up to 18 W of power to a mobile device
Ready for cloud printing and online ordering - Server Direct Print available to retrieve print jobs directly from the cloud
Simple configuration - easily set up a Wi-Fi or Bluetooth connection with the optional dual wireless interface
Fast print speed - quickly produce sharp and crisp text, barcodes and logos; speeds up to 300 mm/sec
World-class service and support - 2-year limited warranty; Epson CoverPlus Extended Service Plans available for up to a total of 5 years of continuous coverage
Paper-saving feature - reduce paper usage by up to 49 percent
Enhanced enclosure - IPX2-rated enclosure is water-resistant; antimicrobial and easy to clean
- Save time and money for your business by using one printer for all your employees
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Direct Thermal Printer provides you with all the features that you need to print quickly and easily
- Conveniently print your receipts
- Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
| Interfaces/Ports |
| USB |
Yes |
| Software |
| Operating System Supported |
- iOS
- Android
- Windows
- Mac OS X
- GNU (Linux)
|
| Warranty |
| Limited Warranty URL |
https://www.netnest.com.au/Brochures/TM-M30III_Receipt_Printer_Spec_Sheet.pdf |
| Power Description |
| Power Source |
Power Adapter |
| Maximum Power Consumption |
30.60 W |
| Cutter |
| Cutting Method |
Automatic |
| Cutter |
Yes |
| Cutter Life |
2200000 Cuts |
| Cut Type |
Full/Partial Cut |
| Network & Communication |
| Bluetooth |
Yes |
| Ethernet |
Yes |
| Wireless LAN |
Yes |
| Ethernet Technology |
Fast Ethernet |
| Miscellaneous |
| Package Contents |
- TM-m30III Direct Thermal Printer
- Power Supply PS-190 with AC Cable
- Starter Receipt Paper Roll
- Setup Guide
- 58 mm Roll Paper Guide
|
| Platform Supported |
Android |
| |
iOS |
| |
PC |
| Noise Level |
53 dB |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics |
| Weight (Approximate) |
1.30 kg |
| Height |
129 mm |
| Width |
127 mm |
| Depth |
128 mm |
| Product Color |
Black |
| Color Family |
Black |
| General Information |
| Product Type |
Direct Thermal Printer |
| Manufacturer Part Number |
C31CK50232 |
| Manufacturer Website Address |
http://www.epson.com.au |
| Manufacturer |
Epson Corporation |
| Product Model |
TM-m30III |
| Product Name |
TM-m30III Direct Thermal Printer |
| Brand Name |
Epson |
| Media Types & Handling |
| Media Thickness |
80 µm |
|
| Maximum Roll Diameter |
83 mm |
| Media Type |
Receipt |
| |
Roll Paper |
| Media Sensor |
Paper Near End Sensor |
| |
Cover Open Sensor |
| Maximum Label Width |
79.50 mm |
| Technical Information |
| Application/Usage |
Mobile POS |
| Barcode Symbology Supported |
Aztec Code |
| |
Codabar |
| |
Codabar (NW-7) |
| |
Code 128 |
| |
Code 39 |
| |
Code 93 |
| |
Composite Symbology |
| |
Data Matrix |
| |
EAN-13 (JAN13) |
| |
EAN-8 (JAN8) |
| |
GS1 DataBar |
| |
GS1-128 |
| |
ITF |
| |
Maxi Code |
| |
UCP-E |
| |
UPC-A |
| Maximum Print Width |
79.50 mm (3.13") |
| Recommended Use |
Receipt Print |
| Connectivity Technology |
Wired |
| Features |
Status Indicator |
| |
Power Saving Mode |
| |
Paper Saving Mode |
| |
Compact |
| Print Technology |
Direct Thermal |
| Installation |
Horizontal/Vertical |
| Print Color Capability |
Monochrome |
| Mean Time Between Failures (MTBF) |
41.1 Year |
| Mean Cycles Between Failures (MCBF) |
65000000 |
| Character Sets |
128 x 43 Graphic |
| |
18 International |
| |
95 Alphanumeric |
| Fonts Included |
Kanji Font B: 20 x 24 |
| |
Kanji Font A: 24 x 24 |
| |
Font C: 9 x 17 |
| |
Font B: 10 x 24 |
| |
Font A: 12 x 24 |
| |
57 cpl |
| |
48 cpl (default) |
| |
36 cpl (Korean) |
| |
28 cpl (Japanese) |
| |
24 cpl |
| |
64 cpl |
| Ingress Protection (IP) Rating |
IPX2 |
| Maximum Print Resolution (dpi) |
203 |
|
Warranty
Additional Information
Height 20
Width 20.5
Length 23.5
Shipping Weight 2.29 KG
